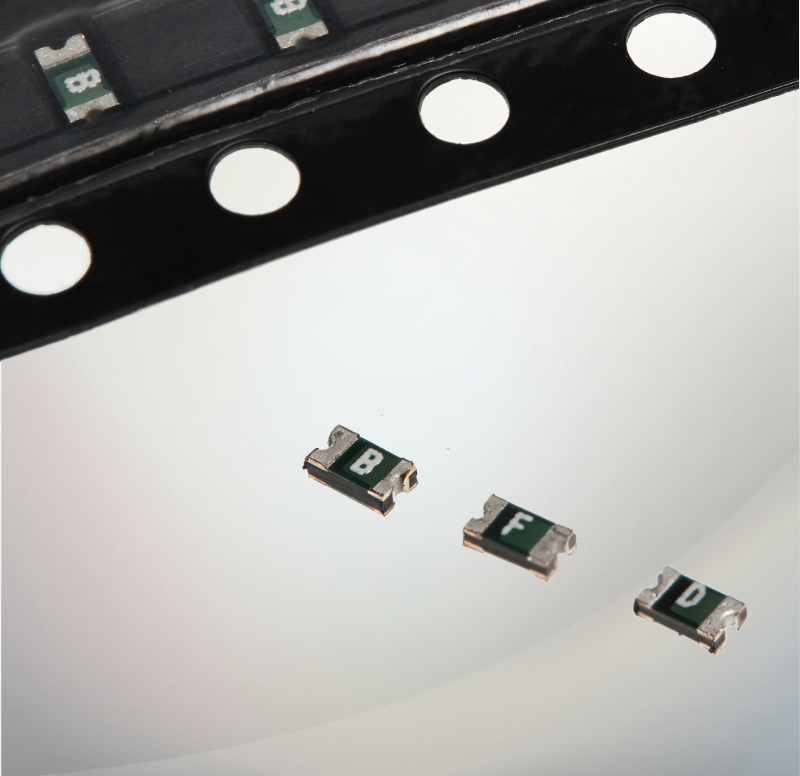

FSMD0603 Series
|
|
.png)
Application
All High-Density Boards
Feature
Small surface mountable, Solid state, Faster time to trip than standard SMD devices, Lower resistance than standard SMD devices
Operation Current
0.01A~0.20A
Maximum Voltage
9V~60VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
| AGENCY | AGENCY FILE NUMBER |
 |
E211981 |
 |
E211981 |
 |
R50090556 |
Electrical Characteristics
|
Part
Number
|
Hold
Current |
Trip
Current |
Rated
Voltage |
Max
Current |
Typical
Power |
Max Time to Trip
|
Resistance
|
||
|
IH, A
|
IT, A
|
VMAX, VDC
|
IMAX, A
|
Pd, W
|
Current
|
Time
|
Rmin
|
R1max
|
|
| FSMD001-0603-R |
0.01
|
0.03
|
60
|
40
|
0.5
|
0.20
|
1.00
|
15.00
|
100.00
|
| FSMD002-0603-R |
0.02
|
0.06
|
60
|
40
|
0.5
|
0.20
|
1.00
|
12.00
|
70.00
|
| FSMD003-0603-R |
0.03
|
0.09
|
30
|
40
|
0.5
|
0.20
|
1.00
|
6.00
|
50.00
|
| FSMD004-0603-R |
0.04
|
0.12
|
24
|
40
|
0.5
|
0.20
|
1.00
|
4.00
|
40.00
|
| FSMD005-0603-R |
0.05
|
0.15
|
15
|
40
|
0.5
|
0.50
|
0.10
|
3.80
|
30.00
|
| FSMD010-0603-R |
0.10
|
0.25
|
15
|
40
|
0.5
|
0.70
|
0.10
|
0.90
|
8.00
|
| FSMD012-0603-R |
0.12
|
0.30
|
9
|
40
|
0.5
|
0.80
|
0.10
|
1.10
|
5.80
|
| FSMD016-0603-R |
0.16
|
0.40
|
9
|
40
|
0.5
|
1.00
|
0.10
|
1.00
|
4.20
|
| FSMD020-0603-R |
0.20
|
0.45
|
9
|
40
|
0.5
|
2.00
|
0.10
|
0.55
|
3.50
|
Thermal Derating
|
Temperature
|
-40℃
|
-20℃
|
0℃
|
23℃
|
30℃
|
40℃
|
50℃
|
60℃
|
70℃
|
85℃
|
|
Derating %
|
157%
|
137%
|
118%
|
100%
|
89%
|
80%
|
70%
|
60%
|
51%
|
37%
|
Product Dimension
|
Part Number
|
A
|
B
|
C
|
D
|
E
|
|||||
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
| FSMD001-0603-R |
1.40
|
1.80
|
0.45
|
1.00
|
0.35
|
0.85
|
0.10
|
0.50
|
0.08
|
0.40
|
| FSMD002-0603-R |
1.40
|
1.80
|
0.45
|
1.00
|
0.35
|
0.85
|
0.10
|
0.50
|
0.08
|
0.40
|
| FSMD003-0603-R |
1.40
|
1.80
|
0.45
|
1.00
|
0.35
|
0.75
|
0.10
|
0.50
|
0.08
|
0.40
|
| FSMD004-0603-R |
1.40
|
1.80
|
0.45
|
1.00
|
0.35
|
0.75
|
0.10
|
0.50
|
0.08
|
0.40
|
| FSMD005-0603-R |
1.40
|
1.80
|
0.45
|
1.00
|
0.35
|
0.75
|
0.10
|
0.50
|
0.08
|
0.40
|
| FSMD010-0603-R |
1.40
|
1.80
|
0.45
|
1.00
|
0.35
|
0.75
|
0.10
|
0.50
|
0.08
|
0.40
|
| FSMD012-0603-R |
1.40
|
1.80
|
0.45
|
1.00
|
0.35
|
0.75
|
0.10
|
0.50
|
0.08
|
0.40
|
| FSMD016-0603-R |
1.40
|
1.80
|
0.45
|
1.00
|
0.35
|
0.75
|
0.10
|
0.50
|
0.08
|
0.40
|
| FSMD020-0603-R |
1.40
|
1.80
|
0.45
|
1.00
|
0.35
|
0.75
|
0.10
|
0.50
|
0.08
|
0.40
|
